CNC Drilling Machine-Plate Drilling Machine
CNC Drilling Machine-Plate Drilling Machine
- Table Mounted Drill Machine, Plate Sizes (L x W) : 1500 x 3000, 2000 x 3000, 3000×4000 .
- Gantry Type Drill Machine, Plate Sizes (L x W) : 2000 x L (L in multiples of 1500 mm).

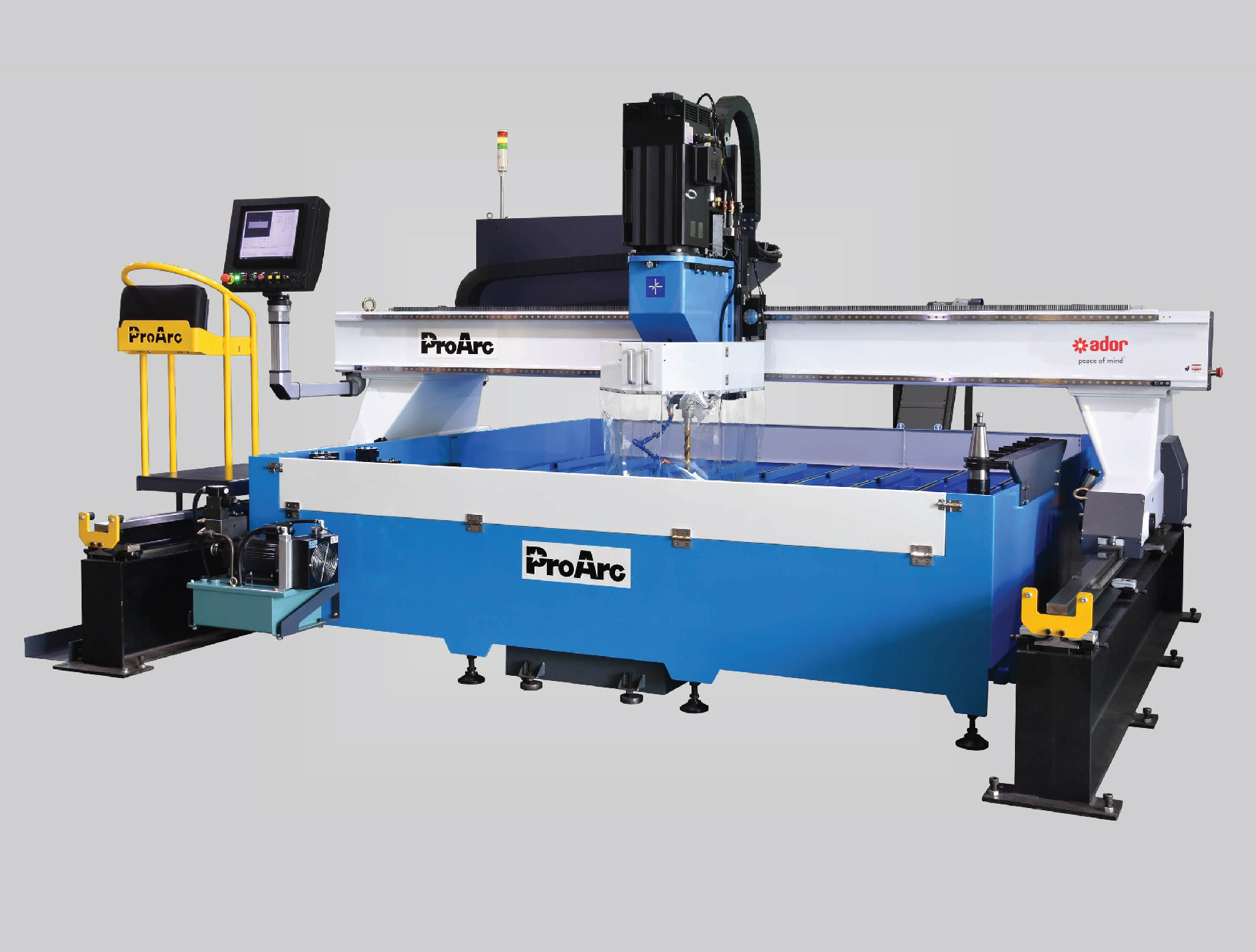

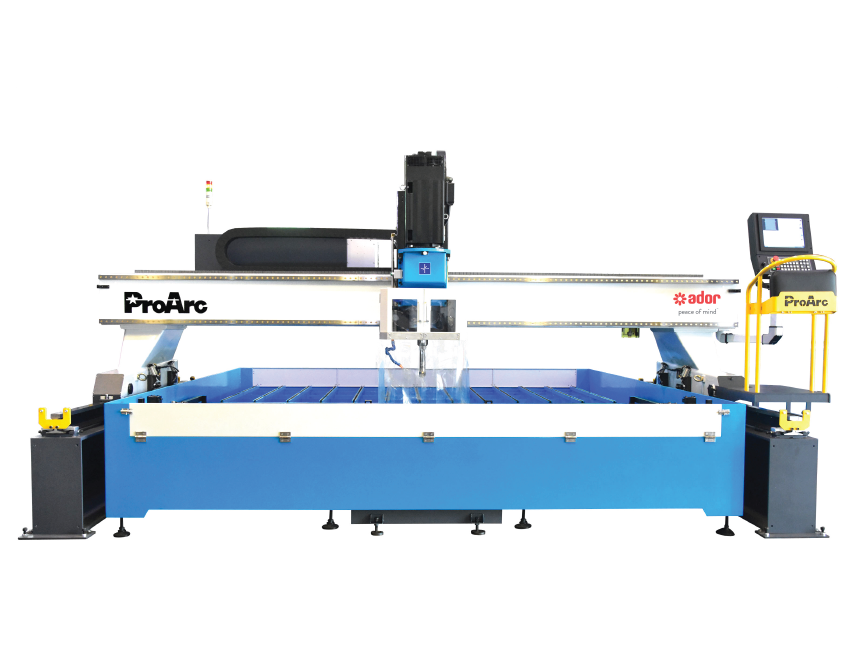

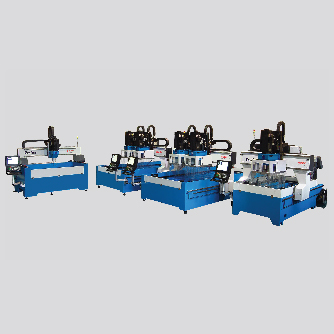

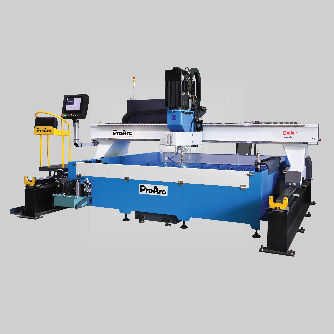

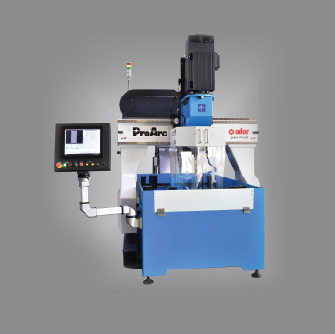

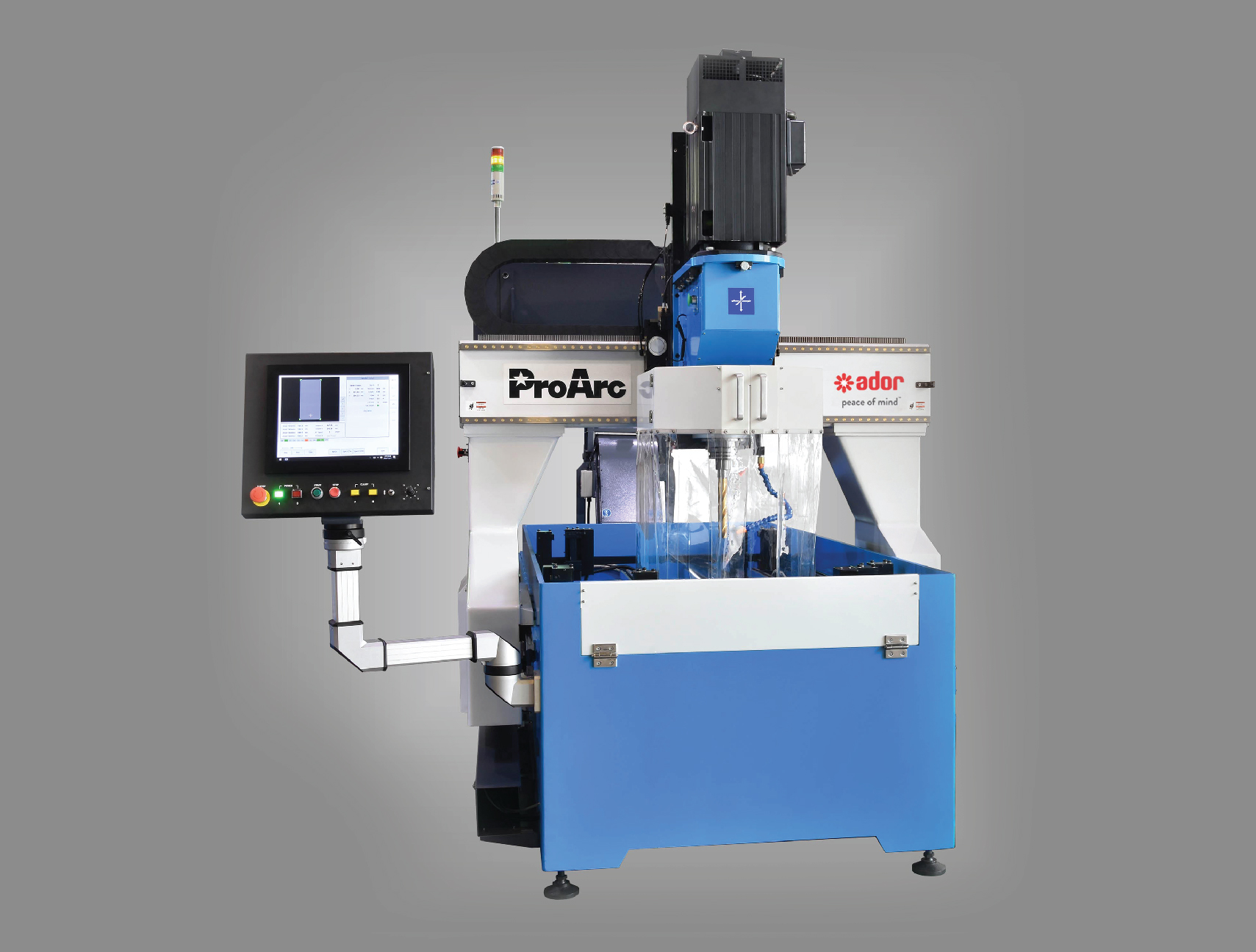

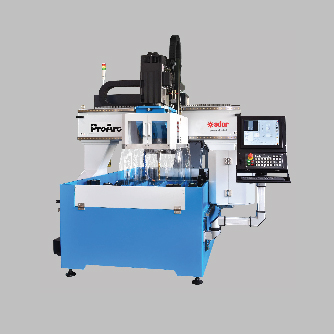

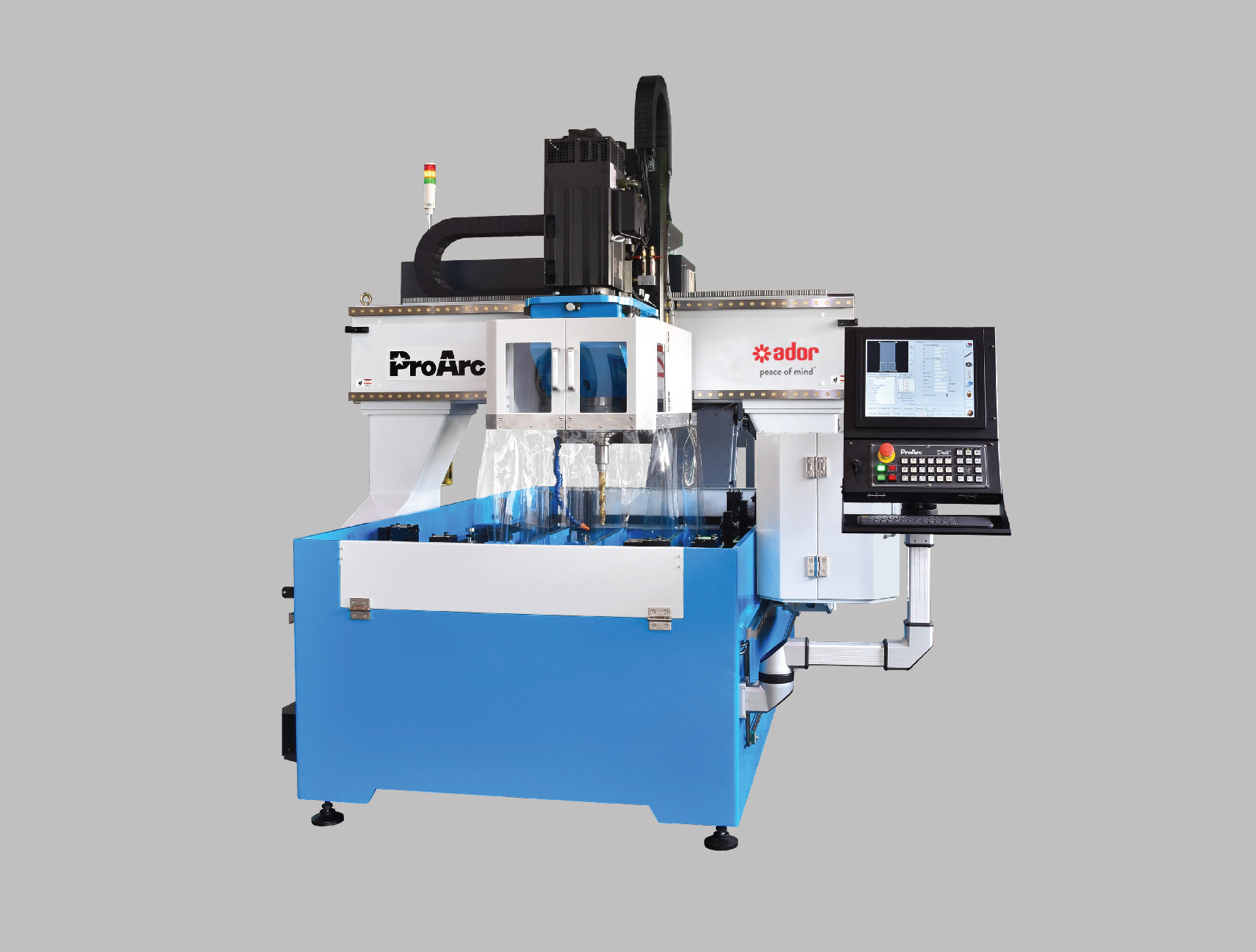

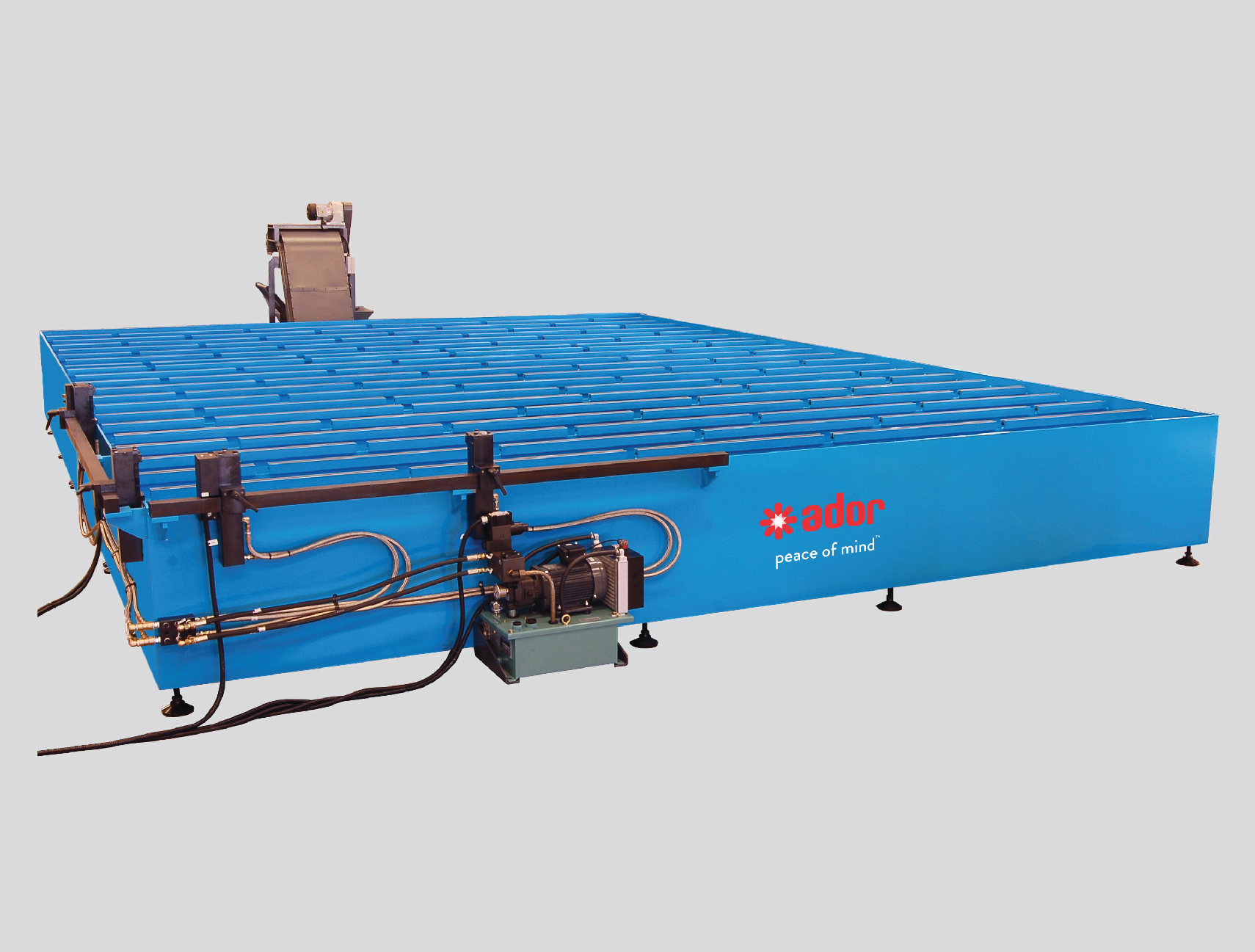

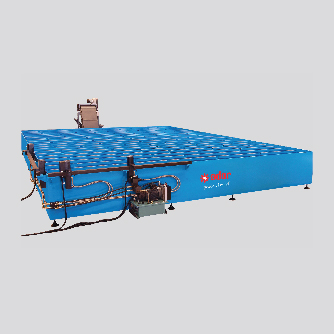

Table Mounted Drill Machine, Plate Sizes (L x W) : 1500 x 3000, 2000 x 3000, 3000×4000
- Drill Size mm: 6 – 32 Ø, 6 – 50 Ø
- Integrated Table with T Slots for manual Job Clamping
- Drill depth 50 mm

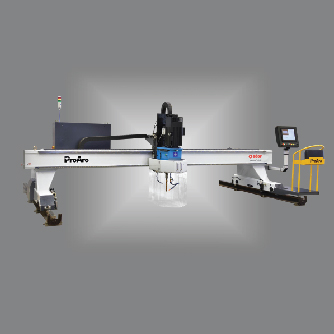

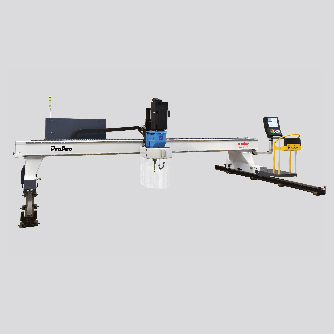

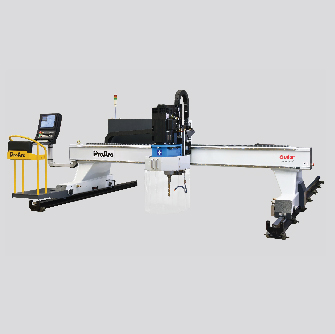

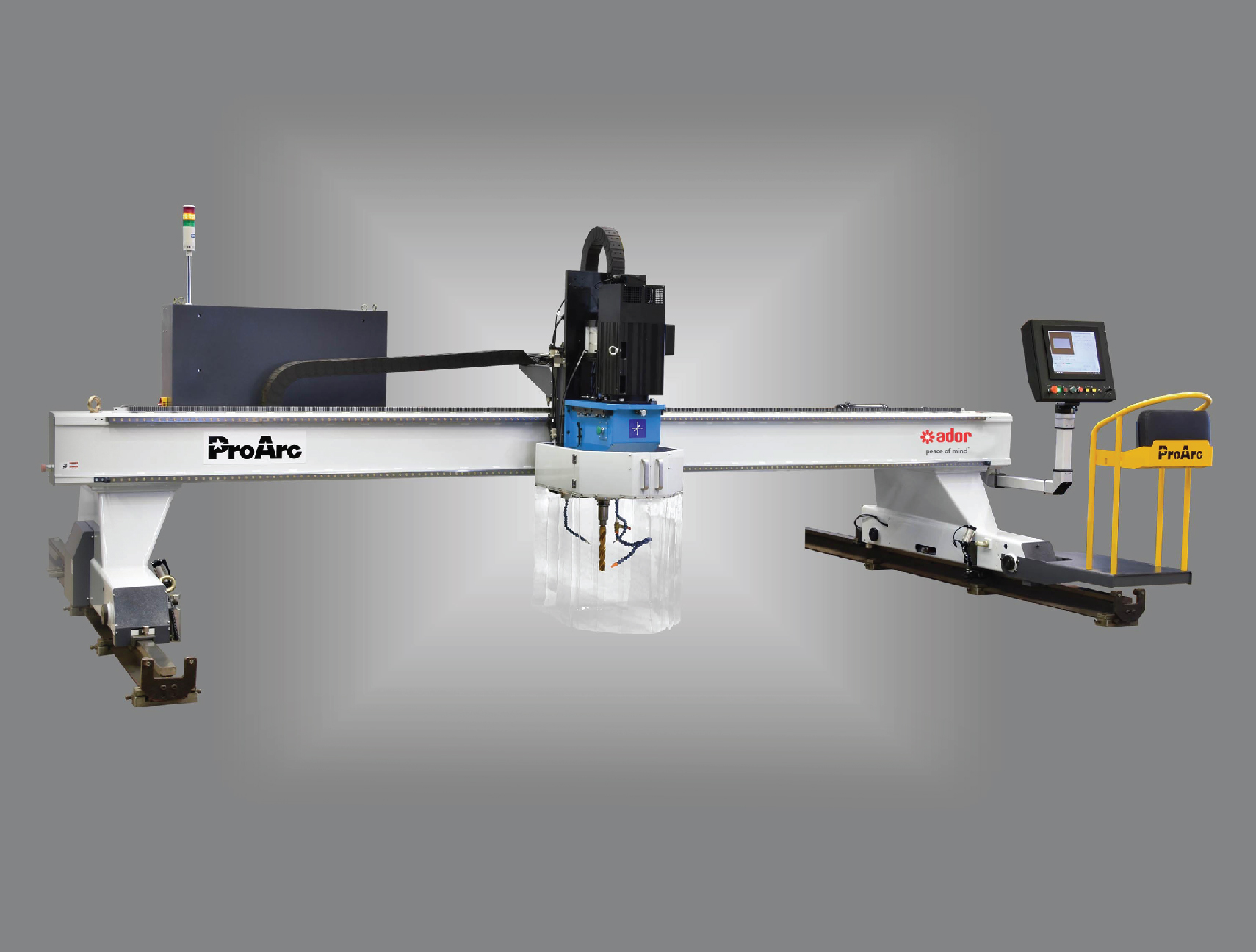

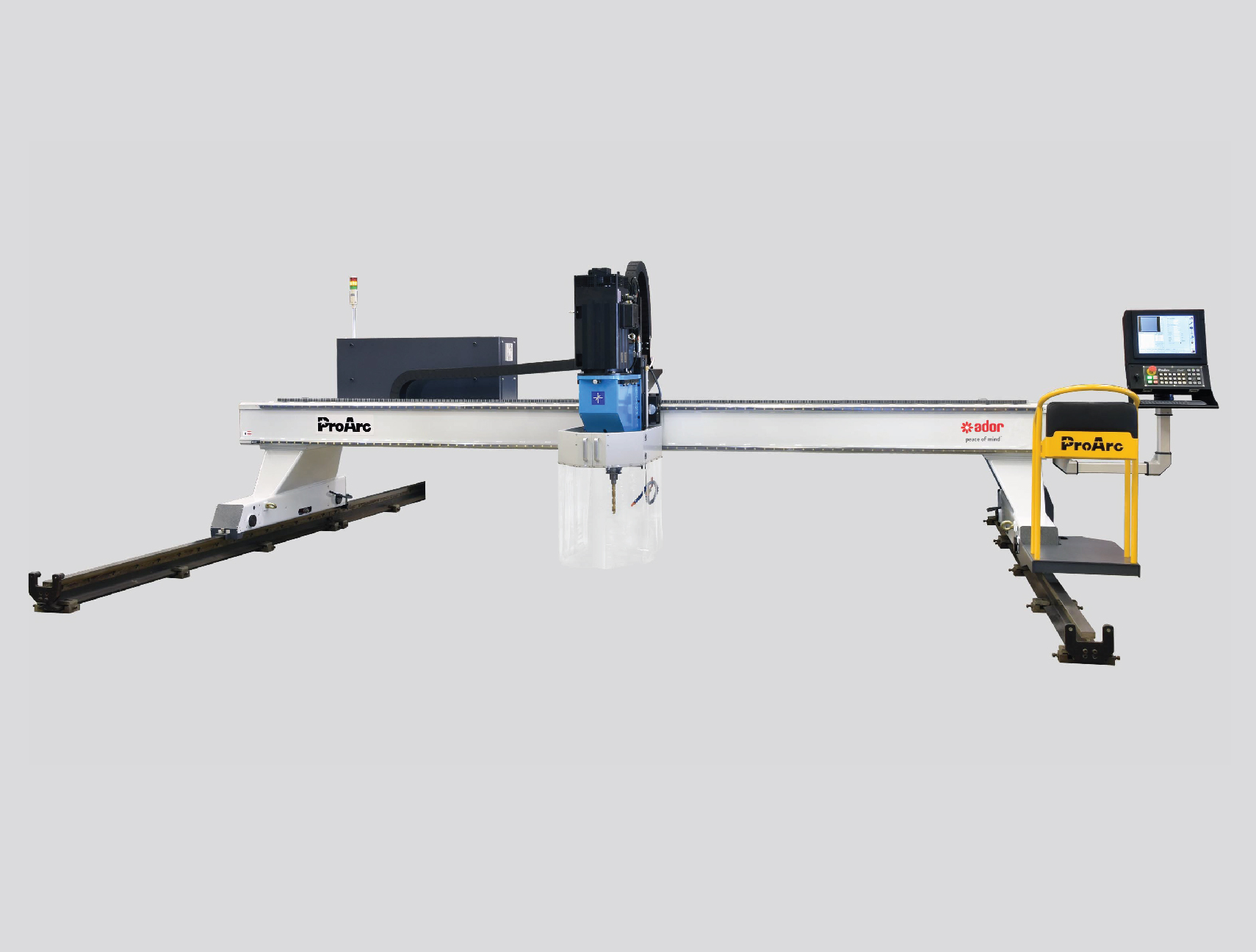

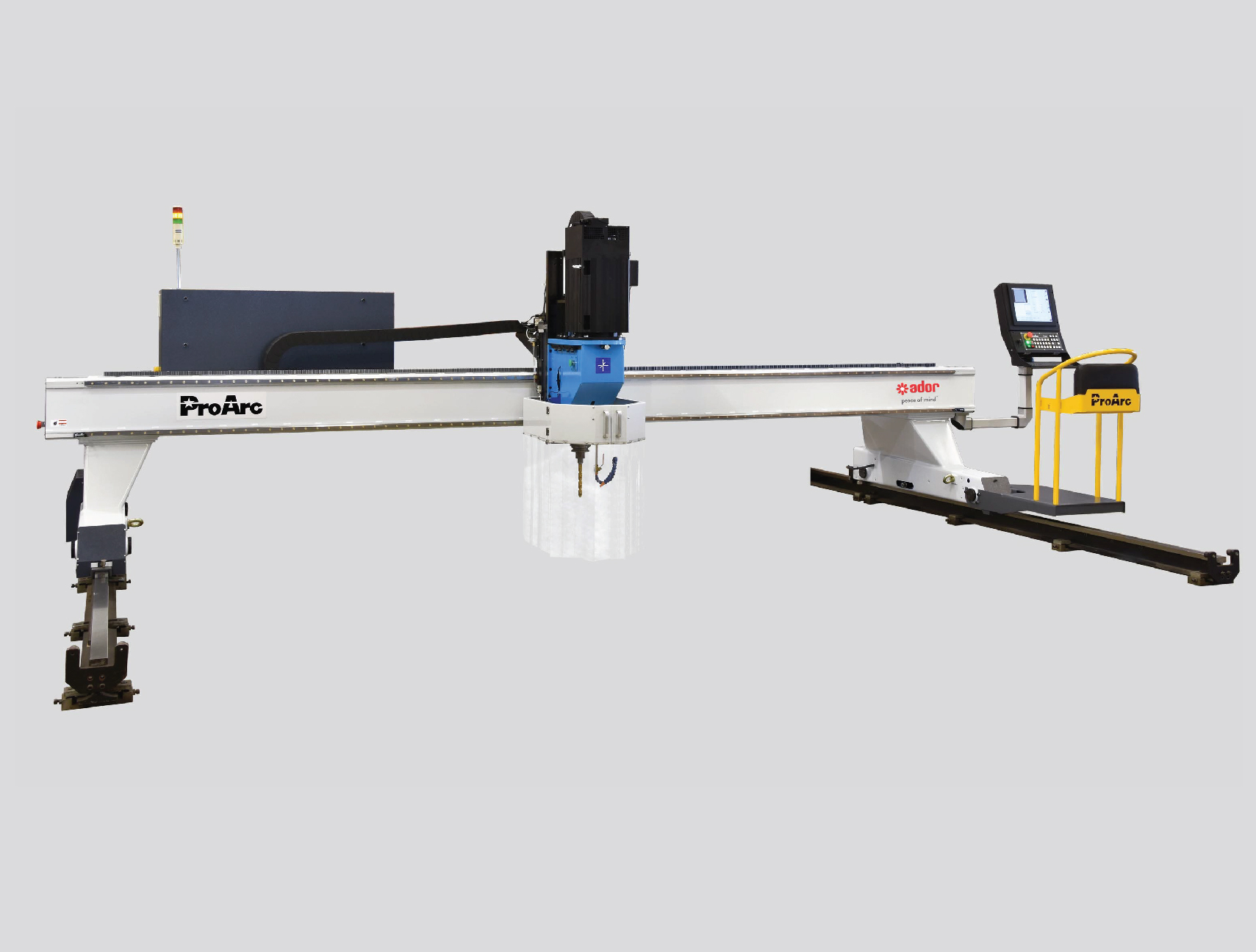

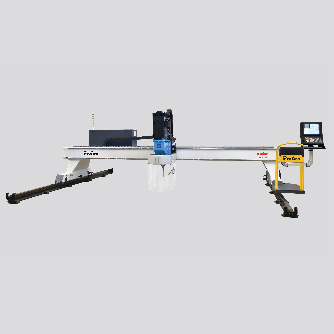

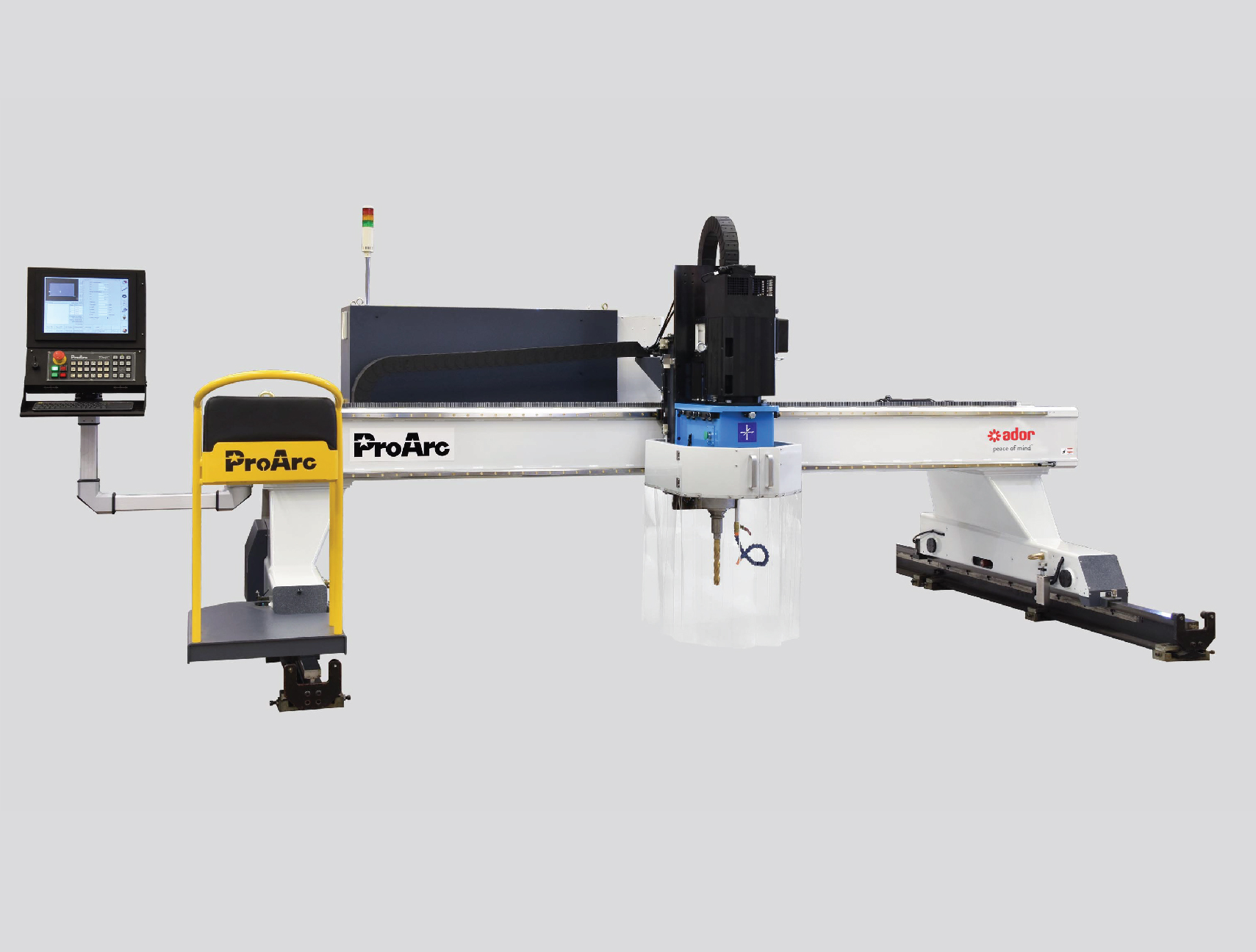

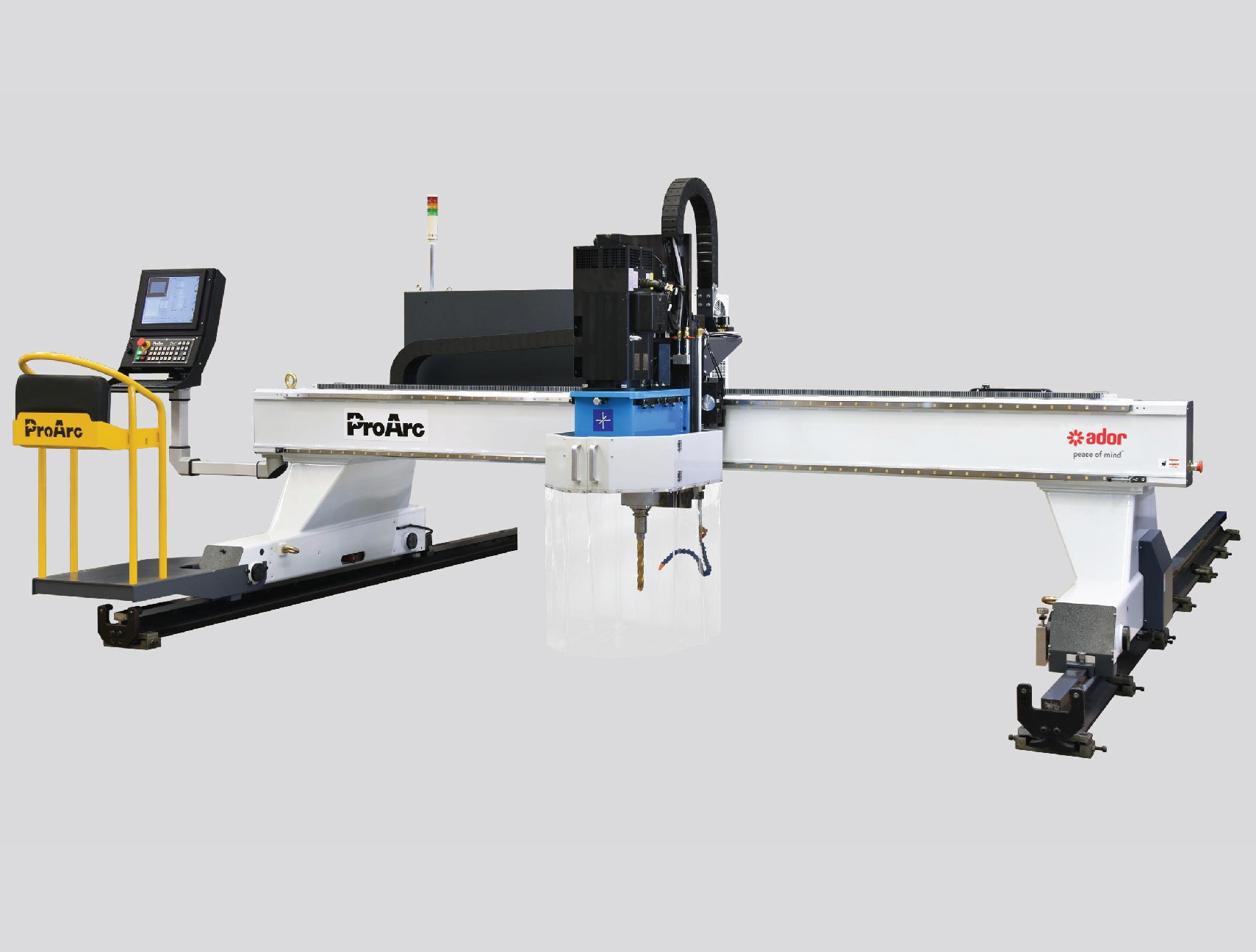

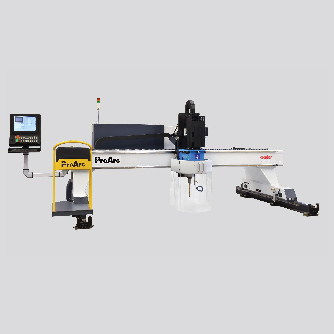

Gantry Type Drill Machine, Plate Sizes (L x W) : 2000 x L (L in multiples of 1500 mm)
- Drill Size mm: 6 – 50 Ø / 6 – 80 Ø,
- Drill Depth upto 100 mm

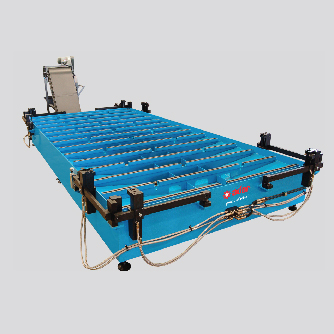

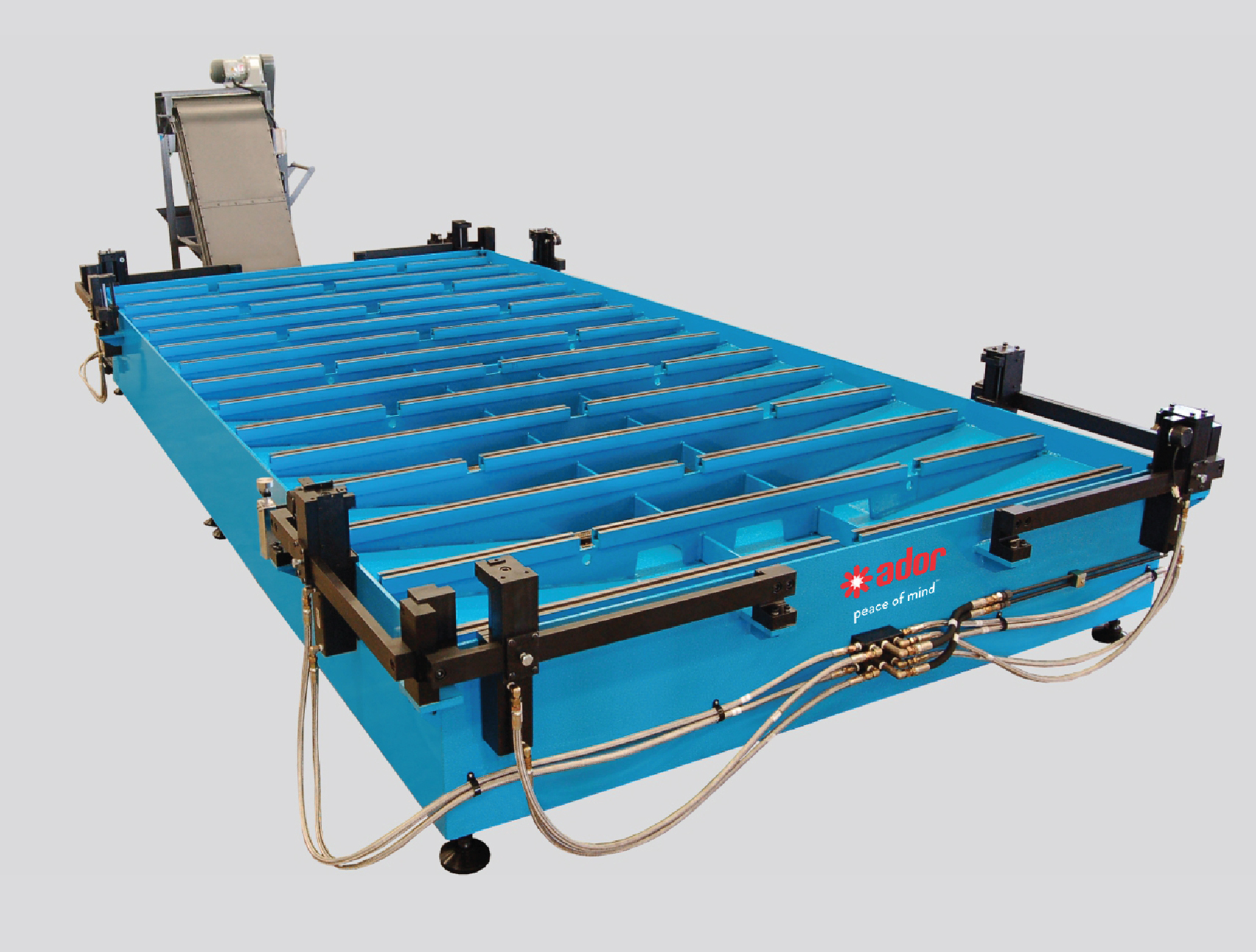

- Separate Table with manual Job Clamping
Other Features
- Automatic Tool Length Detection as an option
- Coolant from side are standard
- Coolant Through Spindle (CTS) as an option
- PLC / CNC Controlled,
- BT & MT Tool acceptance with appropriate sleeves,
- Recipe based automatic spindle speed & feed selection for a given drill diameter
- Laser Alignment with Multi Point Referencing for plate aligment,
